WA-MC
WA-LCD TYPE

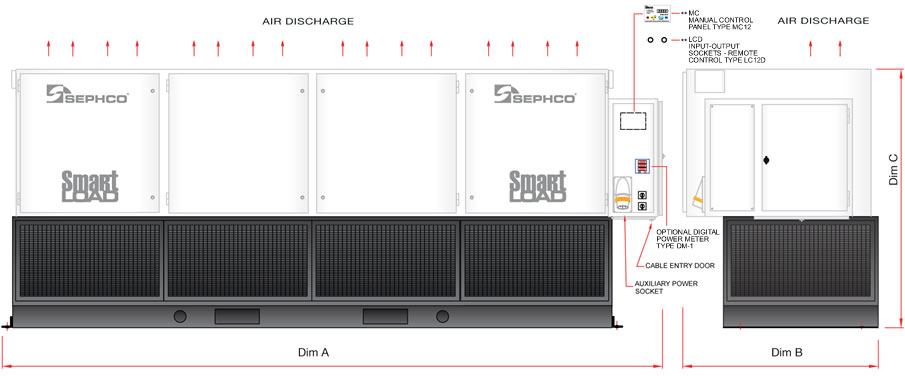

MC12PMB Control For WA……MCSeries Load Banks

The MC12PMB control panel is standard on all WA…..MC portable type load banks. The control panel features a touch type keypad and LED load display, with simple operation of the load bank start up, kilowatt selection and load bank status. The unit automatically configures the load steps in the load bank to provide instant kilowatt response as selected by the Up/Down keys. Other features include load bank “system check” which prevents loading in the event of fan cooling failure, fan reversal or high temperature. Automatic fan cool-down period is applied when the fan stop or load dump is activated.

Operating Features

• Digitalkilowatt display of load value
• Touchkey button operation
• Fan”Start”-“Stop” buttons
• Kilowatt”UP” – “Down” buttons
• Enter(Master) button
• Emergency”Stop” button
• LEDDisplay:-
• LED -Load Bank “ON” indication
• LED -Load Bank “COOLING FAULT” indication
• LED -Load Bank “FAN RUN-ON” indication

LC12DAL Control For WA……LCD Series Load Banks

The LC12DAL controller is a portable processor capable of controlling one or more resistive or reactive load banks from a distance of up to 100m. Operating features include a four-line displaywith simple step-by-step instructional prompts, display of load values such as kW, kVa, V, Hz, PF, Amps and load time. Choice of operation includes manual and automatic load routines. The automatic loading feature has loading routines with time duration and pause override function. Changes to a load routine such as load size and time, is possible at any time during a load test from the pause function key. The controller automatically tunes and corrects the load bank in the event of voltage or resistance fluctuation. The controller also ensures that the load bank is fully protected against over voltage or frequency, preventing the test to proceed. All functions are fully displayed, including warning messages, such as voltage exceeded, frequency incorrectly set, emergency stop, load aborted and cooling failure.

The LC12DAL construction is made of solid aluminium extrusion with die cast corners, weatherproofed and sealed to IP55. The handle can be rotated and locked in any position to suit the user. Connections includes a 6 pin input connector, standard USB port for connection to a PC or Laptop, to obtain additional on-line graphics of actual load tests. Additional features of the controller includes adjustment of all the operational settings namely operating voltage, frequency, power factor, data capture printing intervals. Test routines are held in memory for repeated use.Data captured includes all electrical values, such as phase voltage, line to line voltage, phase currents, line currents, frequency, kW selected, kW achieved, kVa, power factor and elapse time.

Safety features include load bank “System Diagnostics” to ensure that voltage and the operating current do not exceed the load bank’s designed rating. The LC12DAL controller is also available in a panel mounted version for test cell operations.

Operational Features

• MENU -Display Load Profiles In The Auto Routine
• PRINT -Transfers Load Data To PC In The Manual Operation
• DISPLAY VALUES – Display OfLine To Neutral Volts And Amps
• RESET -Erase The Load Routine-Goes Back to Start-Up
• PAUSE -Pauses The Elapsed Time
• LOAD DUMP -Instant Dump Of Operation
• EMERGENCY STOP – Total Shut-Down Of Machine

Technical Data

• OPERATING VOLTAGE
  • 15 Volts
• INPUT CONNECTION
  • 6 Pin Socket & Flexible Data Cable
• OPERATING DISTANCE
  • Up To 100m
• PC INTERFACE MONITORING
  • “B” Type USB
• DISPLAY SCREEN
  • Backlit 75 x 25
• OPERATING MODE SELECTION
  • Manual & Auto
• POWER SELECTION
  • Input Voltage, Power Factor & Frequency
• AUTO LOADING MEMORY
  • Store Up To Six Routines
• LOAD STEPS IN AUTO
  • Up To 10 Per Routine
• LOAD PROCESS TIME
  • Selectable from 1 To 600 Minutes Per Load Step
• LOAD STEP RESOLUTION
  • 1kW & 5kW Subject To Load Bank Model
• FUNCTION DISPLAY
  • Number Of Load banks Connected
  • Fan Start
  • Fan Stop Activated
  • Cooling Fault
  • Emergency Stop
  • Manual Selection
  • Auto Selection
  • Load Menu Profile
  • Input Volts Exceeded
  • HZ Incorrectly Set
  • Load Bank Not Responding
  • Load Bank Diagnostics
• DISPLAY ANDPRINTOUT
  • Volts =Phase To Phase & Phase To Neutral
  • Amps Per Phase
  • HZ, kW, kVa, PF
• DATA CAPTURE
  • Output ToPC
